JET SERIES

APPLICATIONS

Roof curb mounted inline fan with vertical discharge. Optional wall mounting bracket available. Suitable for use with lab cupboards, battery rooms, water treatment plant, plating tanks ventilation, etc.

JET 20

Easy to install

Corrosion resistant

Safety

Made in France

In stock

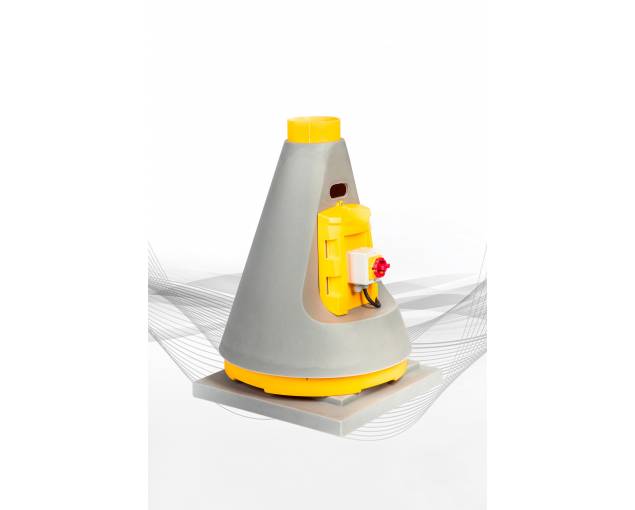

Polypropylene centrifugal exhaust fan designed to extract highly corrosive gases with a maximum airflow of 1600mch and the inlet and outlet dimension of 160 mm. Available in ATEX version.

  • Airflow: 400-1600 mch
  • Total pressure: 80-1200 Pa
  • Inlet: 160 mm
  • Material : polypropylene
  • Motor driving: direct
  • ATEX: Zone II only with three phase motors
  • Moteur: single or three phase
  • Frequency: 50 Hz or 60 Hz , frequency inverter optional

Documentations

JET 25

Easy to install

Safety

Corrosion resistant

Made in France

In stock

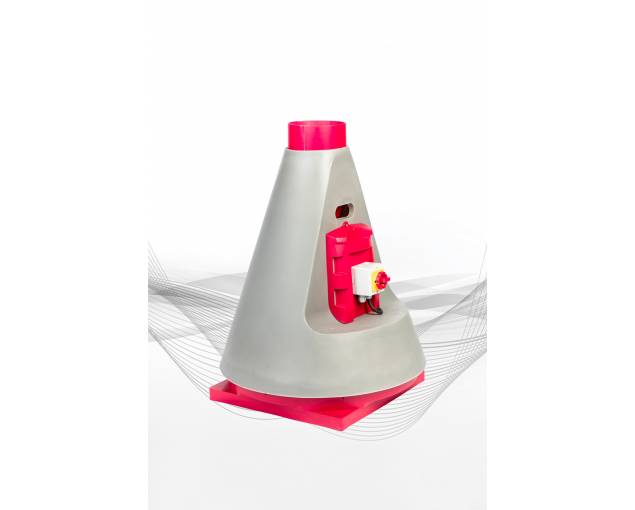

Polypropylene centrifugal exhaust fan designed to extract highly corrosive gases with a maximum airflow of 3500 mch and the inlet and outlet dimension of 200 mm.  Available in ATEX version only with three phase motors.

  • Airflow: 500-3500 mch
  • Total pressure: 100-1600 Pa
  • Inlet: diamètre 200 mm
  • Material: polypropylene
  • Motor driving: direct
  • ATEX: Zone II only with three phase motors
  • Moteur: single phase or three phase

Documentations

JET 30

Easy to install

Safety

Corrosion resistant

Made in France

In stock

Polypropylene centrifugal exhaust fan designed to extract highly corrosive gases with a maximum airflow of 3500 mch and the inlet and outlet dimension of 250 mm. Available in ATEX version only with three phase motors.

  • Airflow: 900-3500 mch
  • Total pressure: 150-800 Pa
  • Inlet : 250 mm
  • Material: polypropylene
  • Motor driving direct
  • ATEX : Zone II only with  three phase motors
  • Motor: single or three phase
  • Frequency : 50 Hz ou 60 Hz , frequency inverter optional

Documentations
